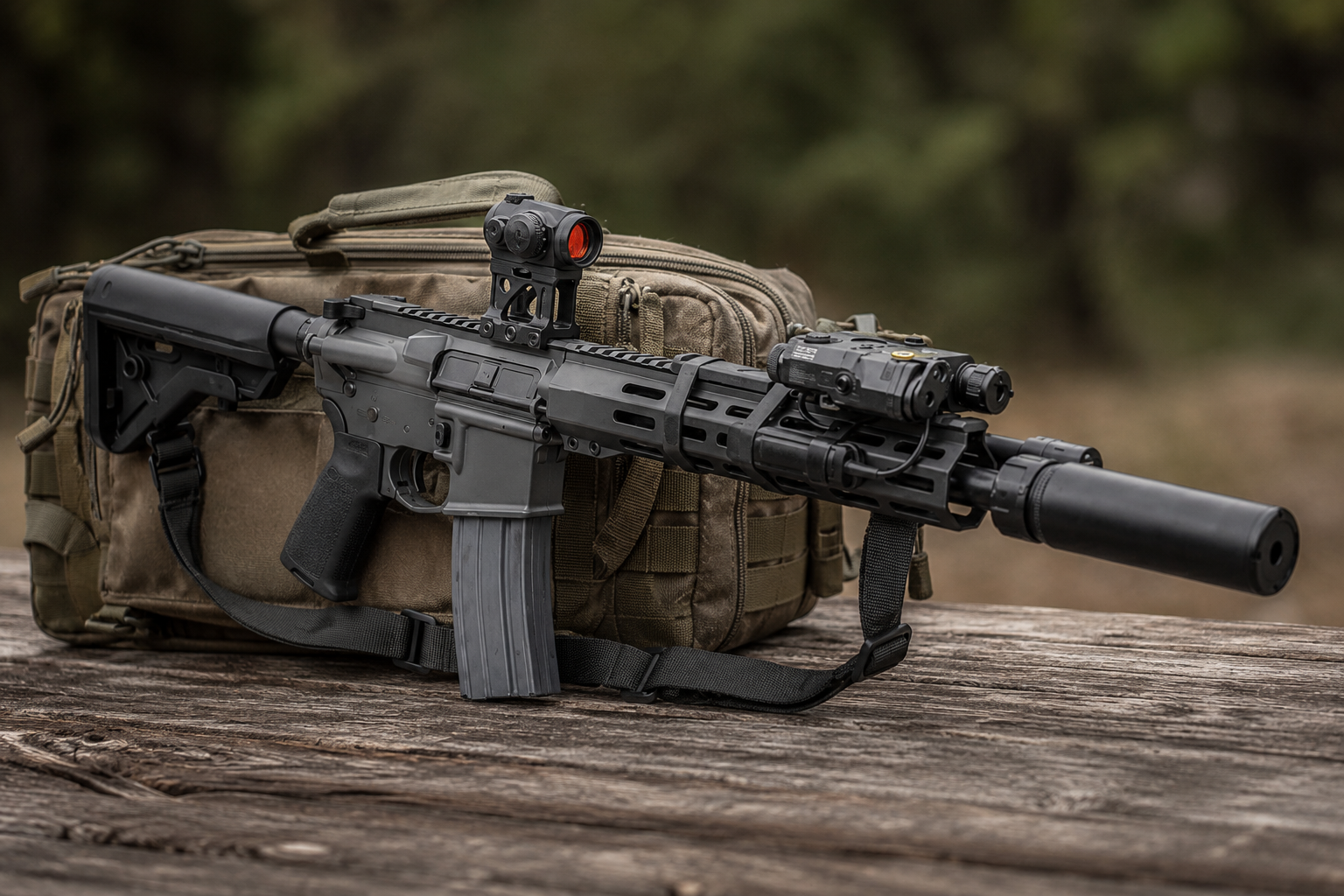

The High Rise Optic Setup: Why Taller Optic Mounts Are Taking Over

Quick Answer

Taller optic mounts are popular because they can provide a more upright, heads-up shooting position, particularly on AR-style rifles equipped with red-dot or holographic sights.

Traditional optic heights around 1.42 to 1.57 inches generally encourage a more substantial cheek weld. Moving toward approximately 1.93 inches raises the optic enough to allow many shooters to keep their head more upright, while 2.26-inch systems take that concept further.

Manufacturers themselves describe the difference this way. Scalarworks recommends its 1.57-inch height for shooters who value a good cheek weld across shooting positions, while describing 1.93 inches as appropriate for a more relaxed heads-up shooting style. Unity Tactical says its 2.26-inch FAST system is intended to provide an upright posture while also accommodating equipment such as night-vision goggles and protective masks.

The advantages can include:

• More upright head position
• Easier optic presentation for some shooters
• Better compatibility with certain head-mounted equipment
• Additional clearance around some top-mounted accessories
• Potentially more comfortable shooting from upright positions

The disadvantages can include:

• Increased mechanical offset between the bore and optic
• Less traditional cheek contact
• Different hold considerations at close distances
• Potentially less comfortable prone shooting
• Backup-sight compatibility issues
• Additional complexity when pairing red dots with magnifiers

The right height depends on the rifle, optic, shooting positions, equipment, and individual shooter.

Key Takeaways

• 1.93-inch and 2.26-inch optic mounts have moved well beyond niche use, with major manufacturers now supporting complete systems at these heights.
• A taller mount can allow a more natural upright head position, particularly when shooting from standing or other relatively upright positions.
• 1.93 inches has become a popular middle ground, providing a noticeably higher optic without moving as far from traditional mounting height as a 2.26-inch system.
• Taller mounts increase the distance between the optic's line of sight and the rifle's bore, making mechanical offset more significant at close distances.
• There is no universally ideal optic height. Traditional, 1.93-inch, and 2.26-inch mounts solve different problems, and the best choice depends on how the rifle will actually be used.

How Rifle Optics Got So High

Tall mounts didn't appear because shooters suddenly decided low mounts looked outdated.

There were practical reasons for moving optics upward.

Specialized users sometimes needed to acquire an optic while wearing equipment that made a traditional cheek weld difficult. Night-vision devices, protective masks, helmets, and other equipment can change how easily the shooter's head interfaces with the rifle.

A higher optic provides additional room.

Unity Tactical explicitly identifies night-vision goggles, protective masks, plate carriers, and other equipment among the applications behind its FAST mounting system.

But once shooters started using taller mounts, another characteristic became obvious:

You don't necessarily need specialized equipment to appreciate a more upright head position.

That discovery helped move taller mounts into the commercial rifle market.

Today, a shooter running nothing more exotic than an AR, red dot, sling, and light may still choose a 1.93-inch mount because it simply feels more natural when presenting the rifle from standing.

Understanding Optic Mount Height

One source of confusion is that optic height isn't always described the same way.

For this discussion, the most useful measurement is generally the optic centerline above the top of the rifle's rail.

Common approximate heights include:

These numbers shouldn't be treated as universal standards for every optic.

The optic itself has height. Mount manufacturers may also measure products differently depending on the mounting interface, and an optic with an unusually tall or short body can change the final optical centerline.

Always verify the complete optic-and-mount combination rather than shopping by riser height alone.

Why 1.93 Inches Has Become the Middle Ground

If there is a height that best represents the mainstream tall-mount trend, it may be 1.93 inches.

Scalarworks offers 1.93-inch versions across multiple mounting systems, including mounts for Aimpoint Micro-pattern optics and 34mm scopes. The company specifically describes 1.93 inches as providing a more relaxed heads-up shooting style.

That height occupies an interesting middle position.

It is clearly taller than a conventional lower-third mount, so the shooter gets much of the ergonomic change that makes tall mounts attractive.

But it doesn't push the optic as high as a 2.26-inch system.

For shooters who use their rifle across standing, kneeling, supported, and prone positions, that compromise can be appealing.

It also explains why 1.93-inch mounts aren't limited to red dots.

Scalarworks currently offers its LEAP/09 34mm scope mount in both 1.57- and 1.93-inch heights, demonstrating that the heads-up concept has expanded into LPVO and magnified-optic setups as well.

Why 2.26 Inches Became Its Own Category

At 2.26 inches, the philosophy becomes more pronounced.

Unity Tactical's FAST Micro positions compatible Aimpoint Micro-pattern optics at a 2.26-inch optical centerline. Unity says the system is intended to promote a heads-up posture and make optic acquisition easier while using night vision, masks, plate carriers, and related equipment.

This is no longer simply a slightly higher lower-third mount.

The optic is intentionally positioned substantially above the rail.

That can make standing presentations feel extremely natural for shooters who prefer the setup, particularly when the rifle is brought toward the eye rather than the shooter aggressively lowering the head toward the stock.

But that height also magnifies the compromises.

Mechanical offset increases.

Traditional backup-sight arrangements become more complicated.

Magnifier alignment needs to be considered.

And shooters accustomed to a firm cheek weld may initially feel as though their head is floating above the stock.

2.26 inches is a system choice, not simply a taller riser.

The Biggest Benefit: Natural Head Position

The most broadly useful argument for a taller mount has little to do with specialized equipment.

It is ergonomics.

With a relatively low optic, the shooter generally lowers the head toward the stock to establish the sight picture.

Raise the optic, and less head movement may be necessary.

For some shooters, this produces a more neutral neck position and makes it easier to keep the head upright while bringing the rifle into the visual field.

Scalarworks explicitly distinguishes its mount heights around this tradeoff: the company associates 1.57 inches with maintaining a good cheek weld across shooting positions and 1.93 inches with a more relaxed heads-up style.

That distinction is useful because it avoids claiming one approach is universally better.

A heads-up position can feel excellent while standing.

A strong cheek weld can become considerably more valuable when stability is the priority.

The ideal mount height therefore depends partly on which shooting positions matter most.

Standing and Dynamic Shooting Favor Taller Mounts

The appeal of a tall optic becomes easiest to understand when the rifle is used primarily from relatively upright positions.

Instead of aggressively dropping the head, the shooter can bring the rifle upward until the optic enters the natural line of sight.

That may make the rifle feel more intuitive during presentations and transitions for some users.

A red dot also doesn't require the same eye relief relationship as a traditional magnified scope, making it particularly well suited to experimenting with mount height.

This helps explain why the tall-mount trend became especially visible on:

• AR-style carbines
• Red-dot-equipped rifles
• Holographic-sight setups
• Red dot/magnifier combinations
• PCCs using AR-like stock geometry

But rifles aren't fired exclusively while standing.

That's where the tradeoffs begin.

Prone Shooting Can Tell a Different Story

A mount that feels excellent while standing may feel considerably less natural when the shooter drops prone.

From prone, the relationship between the shooter's shoulders, neck, head, and rifle changes.

A very tall optic may require the shooter to raise the head farther from the stock than desired. Depending on body proportions and rifle configuration, maintaining a repeatable head position can become more difficult.

This is one reason traditional optic heights haven't disappeared.

Scalarworks continues to recommend its lower 1.57-inch configuration for shooters who prioritize a solid cheek weld across all shooting positions.

A rifle intended primarily for close-range upright shooting may benefit from a very different mount than a general-purpose rifle that regularly sees prone or supported field positions.

Mount height should follow the rifle's job.

Mechanical Offset: The Tradeoff You Can't Ignore

Raising the optic also increases the vertical distance between the optic's line of sight and the rifle's bore.

That difference is commonly referred to as height over bore or mechanical offset.

At the rifle's zero distance, the projectile's trajectory and the optic's line of sight intersect according to the chosen zero and ballistic conditions.

At very close distances, however, the bore is still physically below the optic.

The higher the optic sits, the greater that physical separation becomes.

This isn't inherently a problem.

It simply means the shooter needs to understand the relationship between the optic and bore at the distances where the rifle will be used.

Moving from a traditional mount to a 1.93- or 2.26-inch setup changes that relationship enough that shooters should re-zero the optic and confirm actual point of impact at relevant distances rather than assuming previous holds remain identical.

What Happens to Backup Iron Sights?

Traditional absolute and lower-third optic mounts developed partly around compatibility with standard-height AR backup sights.

Tall mounts change that relationship.

Scalarworks notes that its 1.93-inch LEAP configurations require corresponding 1.93-inch PEAK/02 backup sights if the shooter wants irons aligned at that height.

Unity takes another approach.

Its FAST Micro incorporates a built-in adjustable front and rear backup sight system, allowing the mount itself to provide an emergency sighting solution rather than requiring conventional irons to align through the optic.

That demonstrates an important point about taller mounts:

Once the primary optic moves significantly upward, other components may need to move or change with it.

The mount becomes part of an optics ecosystem rather than an isolated accessory.

Magnifiers Make Height Selection More Complicated

Adding a magnifier introduces another alignment requirement.

The magnifier's optical axis needs to correspond appropriately with the red dot or holographic sight.

Manufacturers have responded with dedicated tall magnifier mounts. Scalarworks, for example, offers its LEAP/16 magnifier mount at 1.57 and 1.93 inches, while Unity's FAST ecosystem includes flip-to-center magnifier solutions designed around its taller optical centerline.

This is another reason buyers should plan the complete setup before ordering a mount.

If you intend to add a magnifier later, consider:

• Red-dot optical centerline
• Magnifier centerline
• Mount compatibility
• Folding or stowing method
• Backup sights
• Available rail space

Buying the red-dot mount first and figuring everything else out afterward can create unnecessary compatibility problems.

Taller LPVO Mounts Are Part of the Trend Too

The heads-up movement isn't limited to red dots.

1.93-inch LPVO mounts are now readily available, and they can provide some of the same ergonomic benefits.

But magnified optics introduce an important difference:

eye relief and eye-box position matter.

A red dot is relatively forgiving about where the shooter's eye sits behind the optic. A magnified scope requires the shooter's eye to remain within a usable position relative to the ocular lens.

That makes stock position, mount height, scope placement, and shooting position more interconnected.

A 1.93-inch LPVO can be excellent for a shooter who prefers a more upright rifle position, but it shouldn't be selected solely because 1.93 inches is popular on red-dot-equipped carbines.

For a rifle expected to spend significant time prone or supported at distance, a conventional-height LPVO may still provide the better overall shooting position.

The optic type matters just as much as the mount height.

Three Optic Mounts That Define the Taller-Mount Trend

The easiest way to understand the shift toward taller optics is to look at the products driving it. Rather than treating every elevated mount as essentially the same, these three examples represent different points along the spectrum—from a moderate heads-up position to a purpose-built 2.26-inch system.

Reptilia AUS Mount 1.70"

The Reptilia AUS Mount in its 1.70-inch configuration represents a useful middle ground between traditional scope height and the increasingly common 1.93-inch setup. Reptilia offers the AUS for multiple scope-tube diameters, including 30mm and 34mm optics, with the 1.70-inch height providing additional elevation without pushing the scope as high as the more aggressive heads-up configurations.

That makes it particularly interesting for an LPVO-equipped general-purpose rifle. A shooter can gain a somewhat more upright head position while retaining more conventional contact with the stock and a position that may feel more natural when shooting prone or supported.

The AUS is machined from billet 7075-T6 aluminum and uses a low-profile mounting system designed around AR-style rifle applications.

For shooters interested in the taller-optic trend but unwilling to commit to 1.93 inches, 1.70 inches may be one of the most practical compromises available.

Best For: General-purpose rifles and LPVO users who want a moderately elevated optic without moving to an extremely tall setup.

Scalarworks LEAP 1.93"

The Scalarworks LEAP at 1.93 inches is a strong example of the height that helped turn tall mounts into a mainstream commercial category. Scalarworks offers 1.93-inch configurations for several optics, including Aimpoint Micro-pattern red dots, and explicitly positions the height around a more relaxed, heads-up shooting style.

At 1.93 inches, the optic sits noticeably higher than a conventional lower-third setup, but the rifle doesn't feel as radically altered as it can with some 2.26-inch systems.

That balance makes the LEAP particularly attractive for shooters building a rifle that still needs to work across multiple positions.

Scalarworks also supports the height with matching products elsewhere in its ecosystem, including magnifier and backup-sight solutions, which matters because raising the primary optic often means reconsidering the rest of the sighting system.

Best For: Shooters who want the benefits of a clearly elevated red-dot position while maintaining a versatile general-purpose rifle.

Unity Tactical FAST Micro 2.26"

The Unity Tactical FAST Micro represents the more aggressive end of the mainstream tall-mount movement. Designed for Aimpoint Micro-footprint optics and compatible sights, the FAST Micro establishes a 2.26-inch optical centerline.

Unity specifically designed the FAST concept around a more upright posture and compatibility with equipment such as night-vision goggles, protective masks, and other head-worn gear.

The mount also incorporates fully adjustable front and rear backup sights addressing the difficulty of using conventional-height backup irons underneath such a tall optic.

For an ordinary recreational rifle, 2.26 inches may be more height than necessary, particularly if the rifle is frequently fired prone.

But for shooters who strongly prefer a heads-up position—or whose equipment makes a conventional cheek weld difficult—the FAST Micro demonstrates why 2.26 inches has become an established category rather than an unusual specialty setup.

Best For: Shooters prioritizing an upright heads-up position or compatibility with specialized head-mounted equipment.

Comparing Popular Optic Mount Heights

*LEAP is a product family with different models for different optics. Verify the specific LEAP model and height before purchasing.

These three heights also demonstrate why there isn't a single answer to the question of how high a rifle optic should be mounted.

A 1.70-inch LPVO mount, 1.93-inch red-dot mount, and 2.26-inch red-dot mount aren't simply progressively "better" versions of the same product. Each changes the shooter's relationship with the rifle differently.

1.70 vs. 1.93 vs. 2.26: Which Height Makes Sense?

For most buyers, this is the real question.

Choose Around 1.70 Inches If...

You want a slightly more upright position but still place considerable value on traditional stock contact and shooting from varied positions.

This height is particularly compelling for an LPVO-equipped general-purpose rifle. It raises the optic enough to change head position without making the rifle feel radically different from a conventional scope setup.

For someone unsure whether they actually want a tall mount, 1.70 inches can be a sensible place to start.

Choose Around 1.93 Inches If...

You specifically want a heads-up shooting position but still expect the rifle to serve across several roles.

This is arguably the sweet spot of the current trend.

It is tall enough for the ergonomic difference to be obvious while remaining less extreme than 2.26 inches. It also has strong commercial support from mount, magnifier, and sight manufacturers.

For a general-purpose red-dot carbine, 1.93 inches is probably the height most buyers interested in this trend should investigate first.

Choose Around 2.26 Inches If...

You have a specific reason for wanting a very high optic or strongly prefer an upright shooting position.

This height becomes especially relevant when equipment such as night vision or protective gear affects normal rifle positioning.

But buyers should understand what they're choosing.

A 2.26-inch mount changes the rifle's sighting geometry enough that mechanical offset, backup sights, magnifier compatibility, stock contact, and shooting position all deserve consideration.

Don't choose 2.26 inches simply because it is the tallest option.

Does a Taller Mount Make You Faster?

This is one of the most common claims surrounding heads-up setups, and it needs some qualification.

A taller mount may allow some shooters to acquire the optic more naturally when presenting the rifle from an upright position. If the optic comes directly into the shooter's normal line of sight, less head movement may be required.

That doesn't mean adding a 1.93- or 2.26-inch mount automatically makes someone faster.

Presentation consistency, stance, familiarity with the rifle, visual processing, and practice all matter.

A shooter who has spent years using a traditional-height optic may initially perform better with the system they already know.

The advantage of a taller mount should therefore be evaluated as an ergonomic preference that may support performance, not a substitute for proficiency.

Is a Cheek Weld Still Important?

Taller mounts have also changed how shooters talk about cheek weld.

At traditional heights, establishing firm and repeatable cheek contact is a familiar part of rifle shooting.

As the optic rises, some shooters transition toward lighter contact—sometimes closer to a chin weld depending on rifle geometry and individual anatomy.

With a non-magnified red dot, that can work because the optic doesn't demand the precise eye relief of a conventional scope.

But repeatability still matters.

The fact that a red dot can be seen from a less rigid head position doesn't mean inconsistent rifle placement suddenly becomes desirable.

With magnified optics, consistent head placement becomes even more important because the shooter has to remain within the optic's usable eye box.

This is another reason a very tall red-dot setup shouldn't automatically be copied onto an LPVO rifle.

When a Traditional-Height Mount Is Still Better

The rise of taller mounts doesn't mean traditional heights are obsolete.

A conventional 1.42- to 1.57-inch setup can still be an excellent choice when:

• The rifle is frequently fired prone
• A strong cheek weld is preferred
• Standard backup sights are important
• Minimum height over bore is desirable
• The shooter already finds the existing position comfortable
• Specialized head-mounted equipment isn't part of the setup

There is also something to be said for simplicity.

Traditional AR optic heights have decades of support behind them. Mounts, magnifiers, backup sights, and other components are widely available and generally straightforward to integrate.

Don't solve an ergonomic problem you don't actually have.

If a conventional-height optic naturally enters your line of sight and works across the positions you use, there may be little reason to raise it.

Common Mistakes When Choosing Optic Height

Buying the Tallest Mount Because It's Trending

A 2.26-inch mount isn't automatically more modern or capable than a 1.57- or 1.93-inch mount.

Height should solve a problem.

If you don't need the additional clearance or prefer a conventional cheek weld, an extremely tall setup may introduce more disadvantages than benefits.

Ignoring Mechanical Offset

Changing mount height changes the relationship between the optic and bore.

Whenever mount height changes substantially, confirm the zero and point of impact at the distances relevant to your shooting.

Forgetting About the Magnifier

If a magnifier is part of the eventual plan, consider it before choosing the red-dot mount.

Matching centerlines and compatible mounting systems can save considerable frustration later.

Treating Red Dots and LPVOs the Same

A height that feels excellent with a red dot may not provide the same experience with a magnified optic because eye relief and eye-box requirements are different.

Copying Someone Else's Rifle

Body proportions matter.

So do stock position, shooting style, optic selection, and intended use.

A mount that feels completely natural to one shooter may feel unnecessarily high to another.

The goal isn't to reproduce a popular rifle setup.

It's to position the optic where you can consistently use it across the shooting positions that matter for your rifle.

Final Thoughts: Taller Isn't Automatically Better

The rise of taller optic mounts reflects a genuine change in how shooters are setting up modern rifles.

Traditional absolute and lower-third mounts remain effective, but 1.70-, 1.93-, and 2.26-inch setups give shooters more control over how the rifle interfaces with their body. For many, the biggest advantage is simply a more natural, upright head position.

The tradeoff is that every increase in height changes something else. Mechanical offset increases, cheek contact changes, prone shooting can become less comfortable, and magnifiers or backup sights may require compatible mounting solutions.

That's why the best optic height isn't necessarily the tallest one.

For a general-purpose rifle, 1.70 to 1.93 inches can provide a useful middle ground between traditional cheek-weld-oriented setups and very tall mounts. A 2.26-inch system makes more sense when the shooter specifically values a pronounced heads-up position or needs compatibility with equipment that makes lower optics difficult to use.

Products such as the Reptilia AUS, Scalarworks LEAP, and Unity Tactical FAST demonstrate that taller mounts are no longer an improvised trend. Manufacturers now design complete mounting ecosystems around these heights.

The best approach is to choose based on how the rifle will actually be used.

Mount the optic high enough to achieve the head position you want—but not higher simply because tall mounts are popular.

High-rise mounts have earned a legitimate place on modern AR-15s, but they're a tool rather than a universal upgrade. The ideal height depends on the optic, shooting positions, equipment, and how the rifle will actually be used. Before deciding how high your optic should sit, make sure you've selected the right optic category in the first place. Our guide to red dots, magnifiers, and LPVOs provides a deeper comparison of today's major AR-15 sighting systems and where each one makes the most sense.

Frequently Asked Questions

What is the best optic mount height for an AR-15?

There isn't one universal height. Traditional mounts around 1.42 to 1.57 inches remain practical, while approximately 1.70 and 1.93 inches provide increasingly upright head positions. A 2.26-inch setup is considerably taller and may be better suited to shooters who specifically want that geometry or use compatible equipment.

Is a 1.93-inch optic mount too tall?

Not necessarily. 1.93 inches has become a popular compromise for shooters who want a heads-up position without moving as high as a 2.26-inch system. Whether it works well depends on the shooter, optic, stock geometry, and shooting positions.

What is the advantage of a 2.26-inch optic mount?

A 2.26-inch mount provides a pronounced heads-up position and can improve compatibility with certain head-mounted equipment. The tradeoffs include greater height over bore and potentially less comfortable positioning when shooting prone.

Do taller optic mounts increase height over bore?

Yes. Raising the optic increases the physical separation between the optic's line of sight and the bore. Shooters should confirm their zero and understand point-of-impact differences at relevant distances whenever significantly changing optic height.

Are tall mounts good for LPVOs?

They can be, but LPVOs introduce eye-relief and eye-box requirements that red dots don't. A moderately elevated LPVO mount may work well for a general-purpose rifle, while an extremely tall setup may be less comfortable in prone or other supported positions.

About the Author

The ProArmory editorial team includes experienced hunters, competitive shooters, military veterans, firearms instructors, and firearms industry professionals committed to producing accurate, practical, and research-based content. Our articles draw on manufacturer specifications, current industry information, and real-world shooting and hunting experience to help readers make informed decisions about firearms, ammunition, optics, hunting gear, and related equipment.

Disclaimer

This article is intended for informational and educational purposes only. Optic height, mounting systems, firearm configurations, and shooting requirements vary by platform and intended use.

Follow the firearm, optic, and mount manufacturers' installation and compatibility instructions. After installing or changing an optic mount, verify proper installation and confirm the firearm's zero before use. Always follow established firearm-safety practices and applicable federal, state, and local laws.
