Shorter, Lighter, Faster: The Rise of Compact LPVOs

The LPVO has spent the last decade doing more.

Magnification ranges climbed from 1-4X and 1-6X to 1-8X and 1-10X. Reticles became more sophisticated. First focal plane designs became increasingly common. Illumination improved, and manufacturers continued packing more capability into what was supposed to be a relatively versatile rifle optic.

Now the industry is working on a different problem:

How do you make the LPVO smaller?

Compact LPVOs are cutting inches and ounces from traditional scope designs while attempting to preserve the characteristics that made low-power variable optics popular in the first place. SIG Sauer's current TANGO-MSR Compact 1-6X24, for example, measures only 8.4 inches long, while Primary Arms' PLxC 1-8X24 manages an eight-power magnification range in a 9.28-inch, 16.95-ounce body.

For comparison, the well-established Vortex Razor HD Gen II 1-6X24 measures 10.1 inches and weighs 25.2 ounces. That doesn't make the Razor obsolete—it demonstrates how aggressively manufacturers are now pursuing reductions in LPVO size and weight.

For hunters, lightweight rifle builders, and general-purpose carbine owners, that's an attractive proposition.

But shortening an LPVO isn't free.

Optical design still has to account for eye relief, eye box, field of view, illumination, image quality, adjustment mechanisms, durability, and magnification range. Making the housing smaller doesn't eliminate those requirements.

The real question is therefore not whether manufacturers can build shorter scopes.

How much optical performance can they retain while doing it?

Quick Answer

Compact LPVOs make the most sense for shooters who want variable magnification without allowing the optic to dominate the rifle.

Compared with some traditional LPVOs, a well-designed compact model can offer:

• Less overall length
• Reduced weight
• Better rifle balance
• More available rail space
• Less bulk on lightweight rifles
• Familiar 1X-to-magnified versatility

The tradeoffs depend heavily on the individual optic.

Shortening a scope can make optical engineering more difficult, and buyers shouldn't assume that two LPVOs with the same advertised magnification range will provide the same eye box, field of view, image quality, illumination, or high-magnification usability.

That's why compact LPVOs need to be evaluated as optics first and small objects second.

A 9-inch 1-8X isn't automatically better than a 10-inch 1-6X simply because it is shorter and offers more magnification.

Key Takeaways

• Compact LPVOs are becoming a distinct optics category, with manufacturers designing shorter bodies rather than simply chasing greater magnification.
• Cutting several ounces from the optic can have a noticeable effect because the scope and mount sit relatively high on the rifle.
• 1-6X remains highly relevant. A compact LPVO doesn't need a 1-10X magnification range to be useful.
• Shorter scope bodies can reduce available mounting latitude, making mount selection and eye-relief positioning particularly important.
• The best compact LPVO balances size with optical performance. Length and weight shouldn't come at the expense of an eye box or field of view that makes the scope frustrating to use.

Why Are LPVOs Getting Smaller?

The simplest explanation is that LPVOs became heavy.

A quality variable optic requires lenses, adjustment assemblies, illumination components, a durable tube, turrets, and magnification controls. Add a one-piece cantilever mount and the complete optics package can contribute substantial weight to a rifle.

That isn't necessarily a problem on every platform.

On a heavier precision-oriented rifle, several additional ounces may matter very little.

But put the same optic on a lightweight AR, hunting rifle, or compact carbine and the balance can change noticeably.

This has created an interesting reversal in the optics market.

For years, manufacturers competed largely by offering more magnification.

Now compact models are increasingly competing on how efficiently they package useful magnification.

Primary Arms' PLxC 1-8X24 is a good example. The current FFP model provides 1-8X magnification in a 9.28-inch body weighing 16.95 ounces with a 30mm tube.

SIG has taken the concept even further on overall length with its current TANGO-MSR Compact 1-6X24, which measures only 8.4 inches and is sold with a compact factory-installed mount.

Those aren't merely shortened tubes.

They're examples of manufacturers treating packaging efficiency as an optic feature.

Weight Matters More Than the Number Suggests

Saving six or eight ounces doesn't sound revolutionary.

On a rifle, however, the location of that weight matters.

An LPVO and mount sit above the receiver. A heavier optics package can change how quickly the rifle feels when moving between positions or carrying it for extended periods.

This is particularly relevant to lightweight hunting rifles and general-purpose carbines, where the owner may already have spent considerable effort reducing unnecessary weight elsewhere.

There isn't much logic in paying for a lightweight barrel, handguard, and stock only to install an unnecessarily heavy optics package.

But weight shouldn't become an obsession either.

A slightly heavier optic with substantially better optical performance may be the smarter choice.

The goal is not necessarily the lightest possible LPVO.

It's avoiding weight that doesn't provide a useful benefit.

Shorter Optics Can Improve Rifle Balance

Overall length affects more than appearance.

A long scope occupies more space above the rifle's receiver and handguard area and can make a compact rifle feel visually and physically crowded. Shortening the optic can provide additional flexibility around backup sights, accessory placement, and other components.

A compact LPVO can also look and feel more proportionate on:

• Short AR-style carbines
• Lightweight hunting rifles
• Compact bolt actions
• Small-frame semi-automatic rifles
• General-purpose rifles built around minimum weight

But there is an important catch.

A shorter scope doesn't necessarily provide more mounting flexibility.

In fact, the opposite can happen.

The Mounting-Space Problem

A compact optic has less physical tube length available.

Depending on where the turret housing and magnification assembly are located, this can reduce the amount of straight tube available for scope rings.

That means buyers need to pay close attention to mount compatibility and fore-aft positioning.

The optic still needs to sit at the correct distance from the shooter's eye.

If the mount doesn't allow enough positioning adjustment, the theoretical advantage of a compact scope can turn into an ergonomic problem.

This is especially important on AR-pattern rifles, where LPVOs commonly need forward cantilever to establish appropriate eye relief.

SIG addresses this directly with the TANGO-MSR Compact by supplying it factory installed and leveled in a compact ALPHA-MSR mount.

That's a useful reminder:

Compact LPVO and compact mount need to be considered together.

Eye Relief Still Matters

Making the scope shorter doesn't change human anatomy.

The shooter's eye still needs to remain within the optic's usable eye-relief range.

Primary Arms lists approximately 3.2 to 3.7 inches of eye relief for its PLxC 1-8X24, depending on magnification.

That specification matters, but the raw number doesn't tell the entire story.

The eye box—how forgiving the optic is when the shooter's eye isn't perfectly centered—can have an enormous effect on how an LPVO feels.

A technically impressive compact 1-10X with a demanding eye position at maximum magnification may be less useful to a particular shooter than a more forgiving 1-6X.

This becomes especially important when shooting from field positions rather than a perfectly controlled bench setup.

Field of View Is Just as Important

Compact LPVO buyers should also pay close attention to the field of view at 1X.

One of the major attractions of an LPVO is its ability to function at low magnification with a broad view of the environment.

Primary Arms lists a 121-foot field of view at 100 yards on 1X for the PLxC 1-8X24.

Compare specifications carefully, but don't shop by one number alone.

Eyepiece design, distortion, reticle visibility, illumination, eye box, and how naturally the optic presents all influence low-power performance.

A compact scope that saves two inches but feels difficult to use at 1X hasn't necessarily improved the rifle.

Does a Compact LPVO Need 1-10X?

Not at all.

The industry's magnification race sometimes makes 1-6X sound outdated, but that ignores what many shooters actually need.

Six-power magnification can be entirely appropriate for a general-purpose carbine or hunting rifle used at moderate distances.

A smaller magnification ratio can also give optical designers a different set of compromises than trying to stretch the same compact housing across a 10X zoom ratio.

That doesn't mean 1-8X or 1-10X is inherently problematic.

It means buyers should ask whether they'll actually use the additional magnification enough to justify any compromises it brings.

A compact 1-6X that performs exceptionally well across its entire range can be more useful than a 1-10X purchased primarily because 10 is larger than 6.

Compact Doesn't Have to Mean Low Magnification

Interestingly, the compact-optics trend is already moving beyond conventional LPVO boundaries.

For 2026, Primary Arms introduced the PLx Compact 1.5-12X36 FFP RDB, which measures 9.75 inches and weighs 19.67 ounces despite offering 12X maximum magnification and a larger 36mm objective.

That optic isn't a traditional true-1X LPVO in the strictest sense because its minimum magnification is 1.5X.

But it demonstrates where compact scope design may be heading.

Instead of asking how much magnification can fit into a conventional scope body, manufacturers are increasingly asking:

How much useful optic can we package into roughly ten inches?

That could make the compact-scope trend relevant far beyond lightweight carbines.

For now, though, the traditional 1-6X and 1-8X compact LPVO remain particularly interesting because they preserve the low-power versatility that made the category popular in the first place.

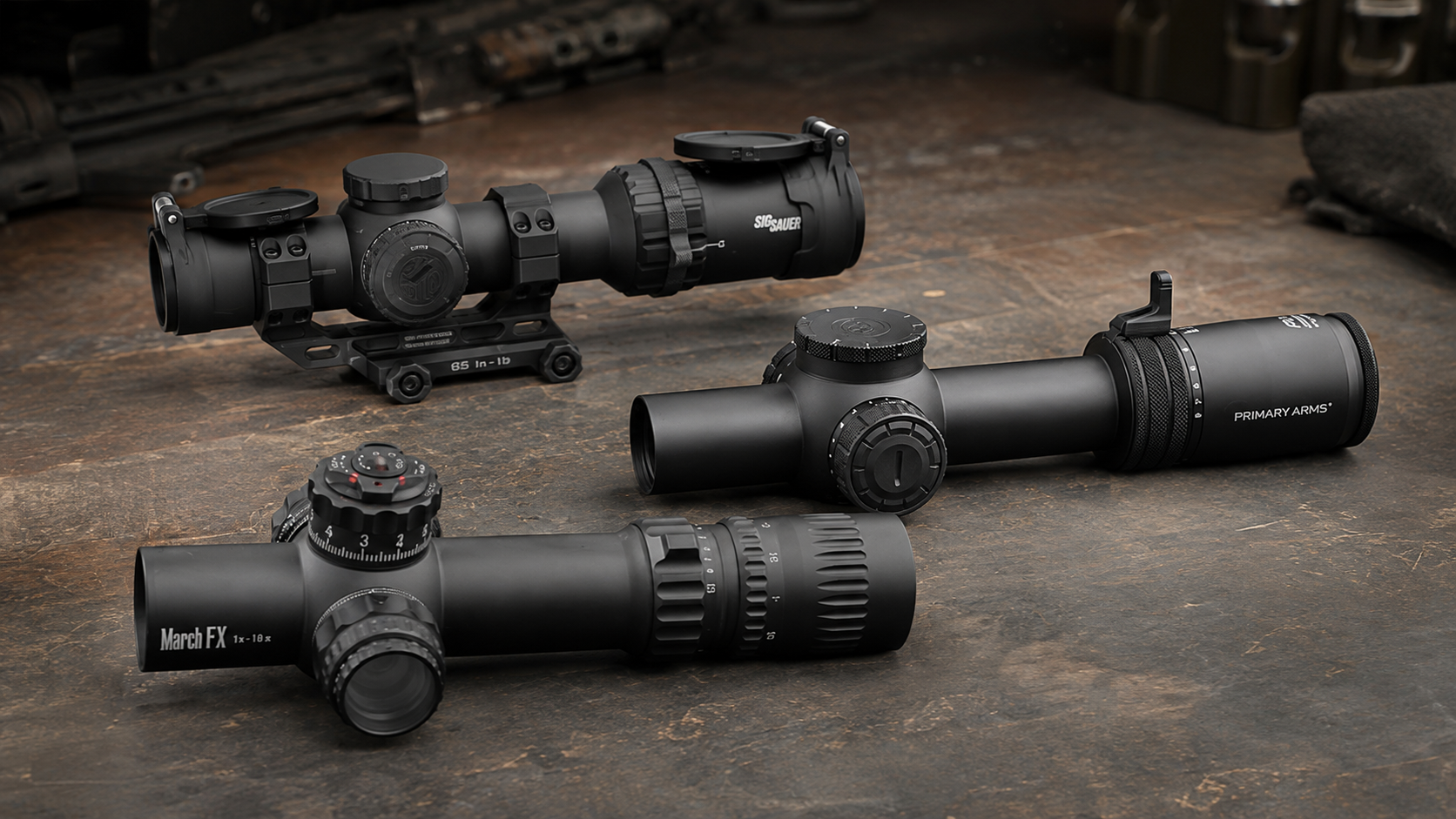

Three Compact LPVOs That Show Where the Category Is Going

Rather than turning this into a long list of scopes, three models illustrate the major directions compact LPVOs are taking: an accessible 1-6X, a lightweight premium 1-8X, and an extremely compact high-end 1-10X.

SIG Sauer TANGO-MSR Compact 1-6X24

The SIG Sauer TANGO-MSR Compact 1-6X24 demonstrates that compact LPVOs aren't limited to premium-priced builds. At approximately 8.4 inches long, SIG has reduced the optic's footprint considerably while retaining the familiar 1-6X24 format. The scope uses a 30mm main tube, second-focal-plane illuminated reticle, and comes paired with SIG's ALPHA-MSR mounting solution. That package makes it particularly interesting for buyers assembling a lightweight general-purpose carbine who don't necessarily need an expensive first-focal-plane 1-8X or 1-10X. Its 1-6X range is also worth emphasizing: for many shooters, six-power magnification is enough for the distances at which a general-purpose rifle will realistically be used. Rather than chasing maximum magnification, the TANGO-MSR Compact focuses on providing useful LPVO capability in a noticeably shorter package.

SIG has also expanded the Compact family with a 1-10X24 first-focal-plane model, showing that the company's short-body approach now extends beyond the accessible 1-6X configuration.

Best For: Buyers wanting an accessible compact 1-6X for a lightweight or general-purpose rifle.

Primary Arms PLxC 1-8X24 FFP

The Primary Arms PLxC 1-8X24 is one of the strongest examples of how far compact LPVO design has progressed. It packs a 1-8X magnification range into a 9.28-inch body weighing approximately 16.95 ounces, giving it considerably less bulk than many traditional premium LPVOs. Depending on configuration, the PLxC is available with several reticle options, while its first-focal-plane design keeps reticle subtensions consistent throughout the magnification range. What makes the PLxC especially relevant isn't simply that it is short; it combines that reduced footprint with a broad 1-8X range and relatively low weight. That makes it appealing for shooters who want a serious general-purpose optic without turning a lightweight rifle into an optics-heavy build. It also illustrates the central challenge of this entire category: a compact LPVO only succeeds when the optical experience remains good enough that the shooter doesn't constantly notice what was sacrificed to make it smaller.

Best For: General-purpose rifles where low weight, compact dimensions, and a useful 1-8X range are all priorities.

March-F 1-10X24 Shorty

At the more specialized end of the market is the March-F 1-10X24 Shorty, an optic that demonstrates just how aggressively an LPVO can be packaged. March lists the Shorty at roughly 8.4 inches in length while providing a full 1-10X magnification range. Depending on the current configuration, weight is around the 17-ounce range, putting an unusually broad zoom ratio into a package comparable in length to some compact 1-6X optics. This is a premium, specialized approach rather than a budget alternative. Its value is showing what becomes possible when minimizing scope dimensions is treated as a primary engineering objective. A 10X maximum also gives the shooter considerably more magnification than a conventional 1-6X, but buyers shouldn't choose it solely because of that number. A broader magnification ratio places greater demands on optical design, and the shooter's experience at 1X and maximum magnification remains more important than the advertised range alone.

Best For: Premium builds where minimum LPVO length and a broad magnification range are major priorities.

Compact LPVO Comparison

*Exact specifications can vary by configuration or current production version. Verify manufacturer specifications for the exact optic before purchasing.

*SIG's published weight includes its factory-installed ALPHA-MSR mount; Primary Arms and March weights are optic-only.

The important part of this table isn't determining a winner.

Buyers can now get 1-6X, 1-8X, and even 1-10X magnification from scopes roughly nine inches long.

The remaining question is how much you should prioritize those dimensions.

Where Compact LPVOs Make the Most Sense

Lightweight General-Purpose Rifles

This is probably the most natural application.

If the rifle itself was deliberately built around moderate weight and good balance, a compact LPVO can preserve those characteristics while adding variable magnification.

A conventional heavier LPVO may still provide excellent performance, but adding a 25-ounce scope plus mount to an otherwise lightweight rifle can change its personality substantially.

Hunting Rifles

Compact LPVOs can also make sense on hunting rifles used at relatively close-to-moderate distances.

The reduced weight is attractive when the rifle will be carried for hours, while low magnification provides flexibility in wooded or mixed terrain.

The tradeoff is objective size. Most traditional LPVOs use approximately 24mm objectives, so hunters prioritizing low-light performance may be better served by a larger conventional hunting scope.

Compactness should not automatically outweigh the conditions in which the optic will be used.

Short and Compact Carbines

A 12-inch scope can feel disproportionate on an otherwise compact rifle.

Short-body LPVOs provide a more balanced package while preserving magnification that a red dot alone cannot offer.

This is where overall length can matter almost as much as weight.

Compact LPVO vs. Red Dot and Magnifier

Compact LPVOs aren't the only way to put both close-range and magnified capability on a rifle.

A red dot with a magnifier remains a strong alternative.

The red dot provides a straightforward unmagnified sighting system, while the magnifier can be moved into position when additional magnification is desired.

A compact LPVO instead packages the entire magnification range into one optic.

Neither approach automatically weighs less. Once mounts and magnifiers are included, complete system weight can become surprisingly similar.

The decision should therefore come down to priorities.

A red dot and magnifier may appeal to someone who places the greatest emphasis on the red-dot experience and occasionally wants magnification.

A compact LPVO makes more sense for someone who expects to use multiple magnification settings regularly and wants everything contained in one sighting system.

What to Look for When Buying a Compact LPVO

Don't Shop by Length Alone

An eight-inch scope isn't automatically better than a nine-inch scope.

If the longer optic provides a more forgiving eye box or better optical performance, that extra inch may be an excellent trade.

Compare Complete Weight

Include the mount.

A lightweight optic placed in an unnecessarily heavy mount can erase much of the advantage gained by buying a compact scope.

Pay Attention to 1X

For a true LPVO, low-power performance remains one of the most important characteristics.

Look beyond the specification sheet and consider field of view, reticle visibility, illumination, distortion, and how forgiving the optic is about head position.

Be Realistic About Maximum Magnification

More isn't automatically better.

If 6X covers everything you realistically expect the rifle to do, don't assume you need 8X or 10X simply because those options exist.

Check Mounting Dimensions Before Buying

Compact scopes can provide less straight tube area for mounting.

Verify that the intended mount allows the optic to reach the correct eye-relief position on your rifle.

Where Compact LPVOs Still Make Compromises

Compact optics are getting very good, but physics hasn't disappeared.

Manufacturers still have to fit an increasingly complicated optical system into less physical space. Depending on the design, compromises can appear in eye box, optical characteristics, mounting latitude, or cost.

Price is particularly important.

Building a small, lightweight optic with ambitious magnification and strong optical performance can be more difficult than simply building a larger scope. Some of the most impressive compact LPVOs therefore sit toward the premium end of the market.

That doesn't mean expensive compact LPVOs are automatically superior.

It means buyers should decide what they're actually paying to reduce.

If saving three ounces and an inch of length substantially improves a lightweight rifle, the premium may make sense.

If the rifle is already relatively heavy and size isn't a concern, a conventional LPVO may provide better value.

Are Compact LPVOs the New Standard?

Probably not across every rifle.

But they are becoming difficult to ignore.

The biggest development isn't simply that scopes are getting shorter. It's that shooters increasingly don't have to choose between a compact optic and serious variable magnification.

A short 1-6X can provide a simple general-purpose solution. A lightweight 1-8X can cover a broader range without overwhelming the rifle. Premium designs are even demonstrating that 1-10X can fit into remarkably small housings.

That makes compact LPVOs particularly relevant for the same reason lightweight rifles have become popular:

Shooters are paying more attention to the complete system rather than evaluating every component independently.

A great optic shouldn't just provide the magnification you need.

It should make sense on the rifle carrying it.

And for lightweight and compact builds, increasingly, that means the LPVO itself needs to get smaller.

Final Thoughts: Compact LPVOs Are About Balance

Compact LPVOs aren't replacing traditional scopes, but they are changing what shooters should expect from a variable optic.

The SIG TANGO-MSR Compact 1-6X24, Primary Arms PLxC 1-8X24, and March-F 1-10X24 Shorty demonstrate just how much capability manufacturers can now package into relatively short optics. More importantly, they give buyers options that don't automatically turn a lightweight rifle into a top-heavy setup.

The key is avoiding the assumption that shorter, lighter, or higher magnification automatically means better.

A compact 1-6X may be exactly right for a lightweight general-purpose rifle. A 1-8X can provide additional versatility without much additional bulk, while a premium 1-10X pushes the concept considerably further. But eye relief, eye box, field of view, optical quality, mounting flexibility, and durability still matter more than winning a specification-sheet comparison.

The best compact LPVO is ultimately the one that reduces unnecessary size and weight without sacrificing the optical performance your rifle actually needs.

For shooters building increasingly lighter and more compact rifles, that's enough to make short-body LPVOs much more than another optics trend.

Compact LPVOs demonstrate how manufacturers are trying to deliver variable magnification without accepting all of the size and weight traditionally associated with the category. They still don't make prism optics obsolete. Fixed-power prisms retain meaningful advantages in simplicity, compactness, and weight, while LPVOs continue to offer substantially greater flexibility across changing distances. If you're trying to decide which approach belongs on your rifle, our battle for the modern rifle optic compares LPVOs and prisms directly.

Frequently Asked Questions

What is a compact LPVO?

A compact LPVO is a low-power variable optic designed with a shorter and often lighter body than many traditional LPVOs while retaining a low-end magnification around 1X and variable magnification for more distant targets.

Is a compact 1-6X enough for a general-purpose rifle?

For many shooters, yes. A quality 1-6X provides considerably more magnification than a red dot while keeping the magnification range relatively straightforward. Whether 6X is enough depends on the rifle, target size, distances, and intended use.

Is a 1-10X better than a 1-6X?

Not automatically. Additional magnification can be useful, but a broader zoom ratio can introduce different optical compromises. Buyers should compare eye box, field of view, image quality, reticle design, and usability across the entire magnification range rather than focusing only on maximum power.

Are compact LPVOs better for lightweight rifles?

They can be. Reducing optic and mount weight helps preserve the balance of a lightweight rifle. However, choosing a lighter scope isn't worthwhile if it sacrifices optical characteristics that are important for the rifle's intended role.

What should I check before buying a short-body LPVO?

Pay particular attention to length, weight, eye relief, field of view, focal plane, reticle, illumination, available mounting area, and mount compatibility. Consider the weight of the complete optic-and-mount combination rather than the scope alone.

About the Author

The ProArmory editorial team includes experienced hunters, competitive shooters, military veterans, firearms instructors, and firearms industry professionals committed to producing accurate, practical, and research-based content. Our articles draw on manufacturer specifications, current industry information, and real-world shooting and hunting experience to help readers make informed decisions about firearms, ammunition, optics, hunting gear, and related equipment.

Disclaimer

This article is intended for informational and educational purposes only. Product specifications, configurations, pricing, and availability can change. Verify current specifications and compatibility with the optic and firearm manufacturers before purchasing or installing equipment.

Always ensure optics and mounting hardware are properly installed according to manufacturer instructions, confirm zero before use, and follow established firearm-safety practices.
